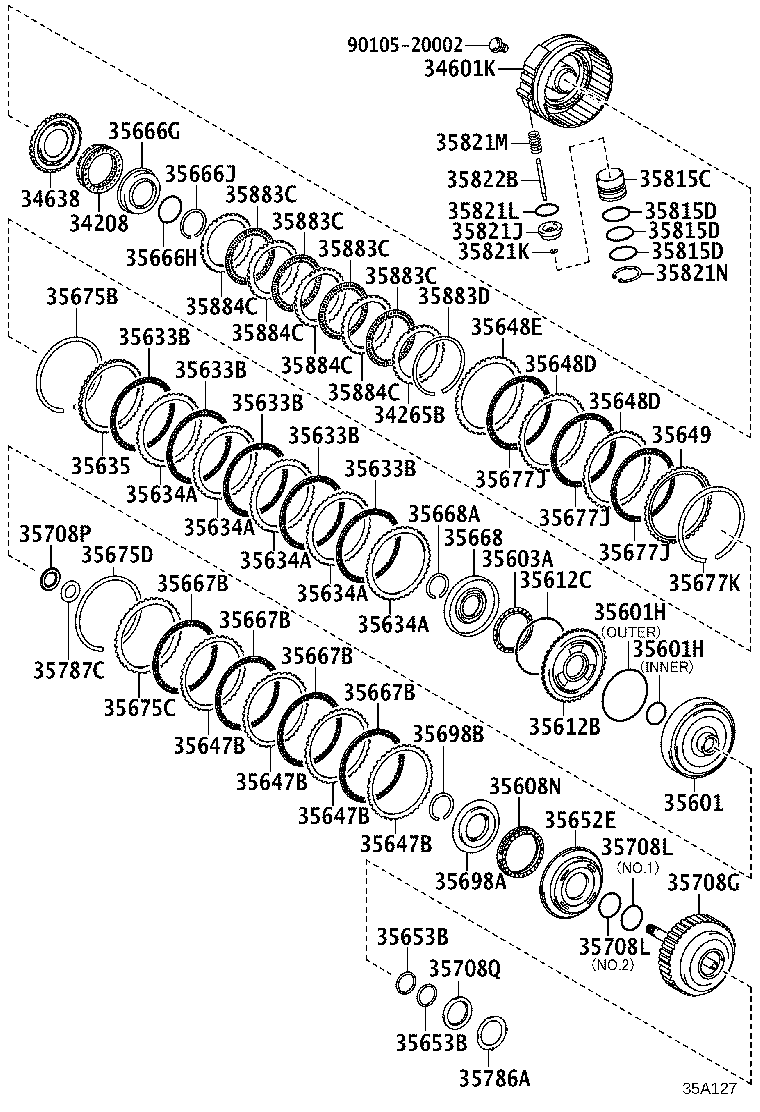

RX350 | مجموعه صفحه های گیربگس
| کد مدل |
سال |
گیربکس |
موتور |
تیپ |
سفارش |
تعداد در |
| GGL26L-ARZGB |
2017-2020 |
AUTOMATIC |
2GRFKS3500CC 24-VALVE DOHC |
STD |
GEN |
- |
| 35667B |
DISK, CLUTCH, NO.2 |
| 3566748010 |
|
| 35633B |
DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) |
| 3563348010 |
|
| 35647B |
PLATE, CLUTCH, NO.2 |
| 3564748010 |
|
| 35634A |
صفحه آهنی گیربگس اتومات |
| 3563448040 |
|
| 35786A |
لوازم كمك گیربكس |
| 3578648010 |
|
| 35612C |
RING, O(FOR FORWARD CLUTCH PISTON) |
| 9030199123 |
|
| 35708L |
RING, O (FOR INTERMEDIATE SHAFT) |
| 9030151004 |
|
| 35698B |
RING SNAP(FOR C-2 CLUTCH BALANCER) |
| 9052052007 |
|
| 35666J |
RING, SNAP(FOR C-4 CLUTCH BALANCER) |
| 9052055003 |
|
| 35653B |
RING, DIRECT CLUTCH DRUM OIL SEAL |
| 3565348010 |
|
| 35821K |
RING, E(FOR B-1 BRAKE PISTON) |
| 9616000500 |
|
| 35821M |
SPRING, COMPRESSION(FOR B-1 BRAKE PISTON) |
| 9050127039 |
|
| 35708G |
شفت میانی گیربکس |
| 3570848020 |
|
| 35677K |
RING, HOLE SNAP(FOR C-3 CLUTCH) |
| 9052099148 |
|
| 35601 |
توپی کامل |
| 3560148030 |
|
| 35666G |
BALANCER, C-4 CLUTCH |
| 3566648010 |
|
| 35821L |
RING, O(FOR B-1 BRAKE PISTON) |
| 9030147007 |
|
| 35698A |
BALANCER, C-2 CLUTCH |
| 3569848010 |
|
| 34601K |
CLUTCH SUB-ASSY, C-3 & C-4 |
| 3460148020 |
|
| 35815C |
COVER, BRAKE PISTON |
| 3581548010 |
|
| 35675C |
FLANGE, DIRECT CLUTCH |
| 3567548110 |
|
| 35675B |
RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) |
| 9052099167 |
|
| 35648D |
PLATE, CLUTCH, NO.3 |
| 3564848010 |
|
| 35652E |
PISTON, C-2 CLUTCH |
| 3565248010 |
|
| 35815D |
RING, O(FOR BRAKE PISTON COVER) |
| 9030154008 |
|
| 35649 |
فلانج کلاچ گیربکس عقب |
| 3564948280 |
|
| 35883D |
RING, SNAP(FOR C-4 CLUTCH) |
| 9052099152 |
|
| 35787C |
RACE, THRUST BEARING, NO.2 |
| 3578748010 |
|
| 35635 |
فلانج کلاچ گیربکس جلو |
| 3563548110 |
|
| 35883C |
DISC, CLUTCH, NO.4 |
| 3588348010 |
|
| 35648E |
PLATE, CLUTCH, NO.3 |
| 3564848020 |
|
| 35708P |
BEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT) |
| 9037424006 |
|
| 34265B |
فلانج کلاچ خروجی گیربکس |
| 3426548120 |
|
| 35821N |
RING, HOLE SNAP(FOR B-1 BRAKE PISTON) |
| 9052166010 |
|
| 35821J |
PISTON, B-1 BRAKE |
| 3582148010 |
|
| 35675D |
RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) |
| 9052099147 |
|
| 34638 |
PISTON, C-4 CLUTCH |
| 3463848010 |
|
| 35677J |
DISC, CLUTCH, NO.3 |
| 3567748010 |
|
| 35608N |
SPRING SUB-ASSY, CLUTCH RETURN W/RETAINER |
| 3560848010 |
|
| 35884C |
PLATE, CLUTCH, NO.4 |
| 3588448010 |
|
| 35822B |
ROD, B-1 BRAKE PISTON |
| 3582248110 |
|
| 35601H |
RING, O(FOR C-1 DRUM) |
| 9030199103 |
|
| 35668 |
بالانسر کلاچ داخل گیربکس اتومات |
| 3566848010 |
|
| 35666H |
RING, O(FOR C-4 CLUTCH BALANCER) |
| 9030156010 |
|
| 35708Q |
BEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT) |
| 9037450001 |
|
| 35603A |
مجموعه فنرهای کلاچ دنده جلو |
| 3560348010 |
|
| 35668A |
RING, SNAP(FOR CLUTCH BALANCER) |
| 9052045037 |
|
| 35612B |
پیستون کلاچ دنده جلو گیربکس |
| 3561248010 |
|
