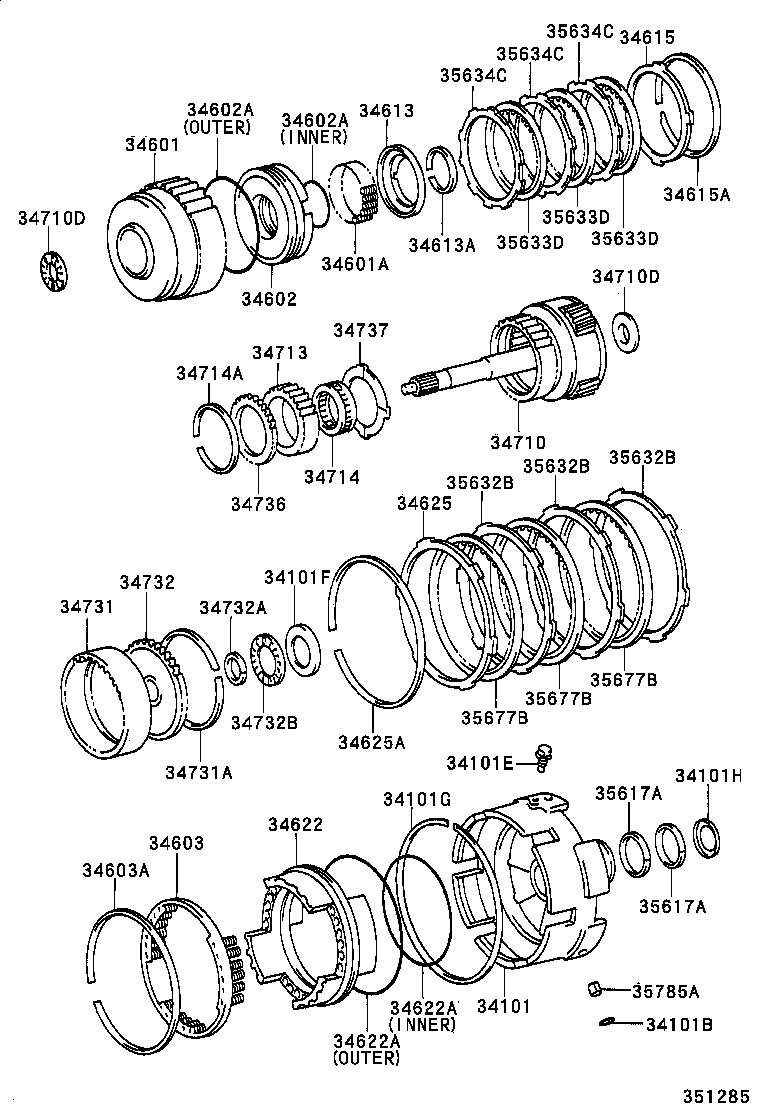

لندکروزر | کلاچ سرعت پایین
| کد مدل |
سال |
گیربکس |
موتور |
تیپ |
سفارش |
تعداد در |
| FJ73LV-PNV |
1986-1989 |
AUTOMATIC |
3F4000CC |
LX |
ME |
- |
| 34710 |
GEAR ASSY, OVERDRIVE PLANETARY |
| 3471036010 |
|
| 34601 |
DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH |
| 3460136010 |
|
| 34731 |
GEAR, OVERDRIVE PLANETARY RING |
| 3473136010 |
|
| 34714 |
CLUTCH, 1 WAY(FOR OVERDRIVE) |
| 3579136010 |
|
| 34732 |
فلانج، رینگی دنده سیاره‌ای گیربکس |
| 3473236011 |
|
| 34602 |
PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH |
| 3460236010 |
|
| 34622 |
پیستون دنده دو و ترمز کلاچ خروجی گیربکس |
| 3562136010 |
|
| 34625 |
فلانج دنده دو و ترمز کلاچ خروجی گیربکس |
| 3567636010 |
|
| 34713 |
RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE) |
| 3471336010 |
|
| 34615 |
كیت گیربكس |
| 3567536010 |
|
| 35677B |
صفحه گرافیتی دنده دو و ترمز خروجی گیربکس |
| 3563336010 |
|
| 35632B |
PLATE, BRAKE (FOR OVERDRIVE) |
| 3563236010 |
|
| 34603 |
صفحه فنر کلاچ خروجی گیربکس |
| 3560836010 |
|
| 35634C |
صفحه آهنی کلاچ خروجی گیربکس |
| 3563436010 |
|
| 34732B |
BEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE) |
| 9037434001 |
|
| 34737 |
واشر بلبرینگ سوزنی کلاچ ورودی گیربکس |
| 3473736010 |
|
| 34613 |
SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING |
| 3461336010 |
|
| 35617A |
RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) |
| 3561736020 |
|
| 34603A |
RING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING) |
| 9052199021 |
|
| 34615A |
RING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE) |
| 9052199017 |
|
| 34622A |
RING, O (FOR OVERDRIVE BRAKE PISTON) |
| 9030199031 |
|
| 34602A |
RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) |
| 9030199027 |
|
| 34714A |
RING, HOLE SNAP(FOR 1 WAY CLUTCH) |
| 9052190002 |
|
| 34710D |
BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR) |
| 9037428010 |
|
| 34736 |
WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2 |
| 3473836010 |
|
| 34101F |
RACE, THRUST BEARING (FOR OVERDRIVE CASE FRONT) |
| 3578936020 |
|
| 34732A |
RING, OIL SEAL (FOR OVERDRIVE PLANETARY RING GEAR FLANGE) |
| 3571236010 |
|
| 34101E |
BOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING) |
| 9010912048 |
|
| 34101G |
RING, HOLE SNAP (FOR OVERDRIVE CASE) |
| 9052199043 |
|
| 34101B |
RING, O (FOR OVERDRIVE CASE) |
| 9030109008 |
|
| 34613A |
RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING) |
| 9052050001 |
|
| 35785A |
RETAINER, OVERDRIVE CASE RING |
| 3578536010 |
|
| 34731A |
RING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR) |
| 9052199019 |
|
| 34101 |
CASE SUB-ASSY, OVERDRIVE |
| 3410160020 |
|
| 34601A |
SPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH) |
| 9050110087 |
|
| 35633D |
دیسک جلوی گیربگس اتومات |
| 3563360040 |
|
